русский1. Introduction to Refrigeration Oil Separator
1.1 What is a Refrigeration Oil Separator?

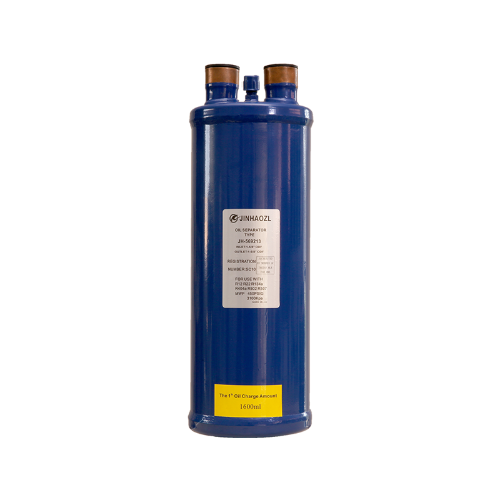

A Refrigeration Oil Separator is a device used in refrigeration systems to remove oil from the refrigerant gas and return it to the compressor. This prevents oil from circulating with the refrigerant, which can reduce efficiency and cause system damage. Oil separation ensures that the refrigerant flows freely, improves heat transfer, and prolongs compressor life.
1.2 Importance of Refrigeration Oil Separator in Modern Systems
- Improved Efficiency: Prevents oil accumulation in evaporators and condensers.
- Reduced System Wear: Minimizes friction in compressors by ensuring oil circulation.
- Energy Saving: Cleaner refrigerant flow reduces energy consumption.
2. Key Functions of Refrigeration Oil Separator
2.1 Oil Separation Efficiency
Typical separation efficiency ranges from 90% to 99% depending on design (coalescing type, centrifugal type). High-efficiency separators prevent oil carryover to evaporators, maintaining optimal system performance.
2.2 Impact on Compressor Performance
Oil return to the compressor reduces overheating and mechanical wear. Ensures stable lubrication, extending the lifespan of compressors by 20–30% compared to systems without separators.
2.3 Maintaining System Stability
Prevents oil from blocking refrigerant flow in pipes. Ensures consistent cooling capacity and stable operation.
3. Refrigeration Oil Separator in Cooling Systems
3.1 Role in System Design
Installed on the discharge line between the compressor and condenser. Helps maintain system balance by separating oil before the refrigerant reaches sensitive components.
3.2 Types of Systems Using Refrigeration Oil Separator
| System Type | Function of Oil Separator | Notes |
|---|---|---|
| Commercial Refrigeration | Maintains evaporator efficiency | High volume, moderate pressure |
| Industrial Cooling | Reduces compressor wear | Large-scale systems |
| HVAC & Air Conditioning | Ensures smooth refrigerant flow | Compact design required |
3.3 Benefits of Proper Oil Separation
- Increases cooling efficiency by 5–10%.
- Reduces maintenance frequency and energy cost.
- Protects system components, lowering failure risk.
4. Installation of Refrigeration Oil Separator
4.1 Installation Guidelines
- Install vertically or at a slight incline to allow oil return to the compressor.
- Connect discharge pipe securely to avoid leaks.
4.2 Common Installation Mistakes
- Incorrect installation angle → oil may not return properly.
- Oversized or undersized piping → increases pressure drop.
4.3 Tips for Optimal Performance
- Choose a separator based on compressor capacity and refrigerant type.
- Regularly inspect for oil accumulation and ensure proper drainage.
5. Maintenance of Refrigeration Oil Separator
5.1 Routine Maintenance Procedures
- Inspect separator for oil levels.
- Clean internal elements or replace filters if clogged.
5.2 Troubleshooting Common Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Oil carryover to evaporator | Clogged separator or incorrect sizing | Clean/replace separator, adjust size |
| Reduced cooling efficiency | Oil accumulation in pipes | Flush system, check oil return |
5.3 Best Practices for Longevity
- Establish a regular inspection schedule.
- Use compatible refrigerants and maintain recommended operating pressures.
- Monitor separator performance with pressure and temperature sensors.
6. Role and Impact of Refrigeration Oil Separator
6.1 Why Every System Needs It
Improves compressor efficiency and reliability. Prevents oil-related failures that can lead to costly repairs.
6.2 Economic and Environmental Benefits
- Reduces energy consumption.
- Lowers maintenance cost and extends equipment life.
- Minimizes refrigerant loss, contributing to environmental sustainability.
6.3 Future Trends in Oil Separation Technology
- Advanced Materials: High-performance coalescing media.
- Compact Design: Space-saving separators for modern systems.
- Smart Monitoring: Real-time performance sensors integrated into systems.
7. Conclusion
The Refrigeration Oil Separator is a vital component in any refrigeration system. Proper installation, routine maintenance, and understanding its role in system performance ensure long-term efficiency, energy savings, and reduced wear on compressors. It supports system stability and contributes to operational cost savings and environmental protection.
8. FAQ
1. What is the primary function of a Refrigeration Oil Separator?
The primary function is to remove oil from the refrigerant and return it to the compressor, ensuring smooth refrigerant flow and efficient system operation.
2. How often should a Refrigeration Oil Separator be maintained?
Regular inspection is recommended every 3–6 months depending on system usage, with cleaning or filter replacement as needed.
3. Can a Refrigeration Oil Separator improve system energy efficiency?
Yes, by ensuring proper oil separation, the system operates more efficiently, reducing energy consumption and prolonging equipment life.
