Refrigerant Filter Driers: Selection, Placement, and Maintenance for Reliable HVAC Performance

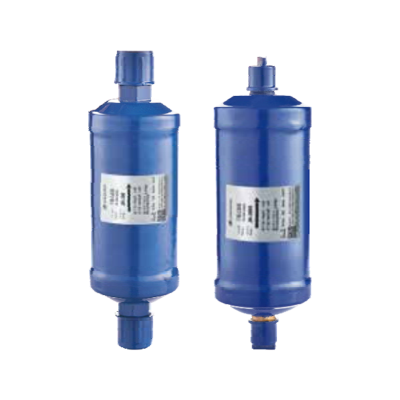

HVAC refrigerant filter drier sizing guide

Why Sizing Matters Far Beyond “Will It Fit?”

Choosing the correct filter drier size is not just a packaging decision; it directly influences system stability, compressor life, and energy efficiency. A unit that is too small can saturate quickly, allowing acids, sludge, and moisture to circulate long before the equipment reaches its expected service interval. Conversely, a unit that is arbitrarily oversized can impose unnecessary pressure drop, create oil return issues at low load, and complicate evacuation. In liquid lines, excessive pressure drop reduces net positive suction at the expansion device, causing flashing, starved evaporators, and unpredictable superheat. In suction lines (used temporarily for cleanup or in special service), the wrong size can compound pressure drop and raise compression ratio, which erodes capacity and elevates discharge temperatures. The best practice is to balance contaminant capacity, allowable pressure drop at design mass flow, and the refrigerant’s viscosity characteristics, keeping in mind that blends and higher-pressure refrigerants behave differently from legacy fluids.

Rules of Thumb That Still Need Verification

For quick estimates, many technicians correlate drier size to equipment tonnage, then verify the selection against the manufacturer’s flow/pressure-drop curves. As a generalized approach, select a liquid-line drier whose rated flow at your refrigerant and condensing temperature yields an acceptable pressure drop—often targeted under a small fraction of a bar (or a few psi) at design. The contaminant capacity should be appropriate for the installation scenario: new equipment on clean piping can use compact units, while retrofits, burnouts, or systems exposed to ambient during lengthy construction benefit from larger volumes and higher desiccant mass. Also weigh oil type and miscibility; POE oils scavenge moisture quickly, so controlling residual moisture is essential, especially on HFC/HFO blends. Always reconcile rules of thumb with the specific chart data for the refrigerant and temperature range you expect in service.

Worked Example and Comparison in Words

Imagine a 5-ton split system using a common high-pressure refrigerant. If you pick a very small liquid-line drier, you might keep the cabinet tidy, but you will likely incur comparatively higher pressure drop at the design mass flow. When we compare a mid-size cartridge to the undersized choice, the mid-size option generally reduces pressure drop at rated tonnage while offering more desiccant, so it stays effective longer during early break-in. Compared with an oversized industrial canister, the mid-size unit usually avoids needless volume and mitigates the risk of oil logging in part-load conditions. Thus, the “middle-right” selection balances flow and capacity while preserving stable subcooling at the expansion device.

Illustrative Selection Table (verify with manufacturer data)

Common Sizing Pitfalls to Avoid

• Ignoring refrigerant-specific flow data and relying only on “tonnage labels.”
• Forgetting the additive effect of fittings and valves when evaluating pressure drop.
• Using the same size for initial cleanup and for permanent service duty without re-evaluating.
• Skipping a second evacuation after drier replacement on suspect systems.

filter drier for heat pump systems

Bidirectional Flow Changes the Requirements

Heat pumps reverse refrigerant flow, so any filter drier intended to remain in the circuit must be designed for bi-directional operation or paired with check valves that ensure proper flow through the core. A conventional one-way liquid-line drier may function in cooling, yet in heating mode it can become an unintended restriction or even trap contaminants in the wrong part of the loop. Bi-flow models mitigate this by presenting a near-symmetric flow path through the desiccant bed and screens. Compared with single-direction units, bi-flow designs reduce the risk of pressure drop spikes during defrost events and minimize oil-return disturbances when the reversing valve actuates. Because defrost sends hot gas through unusual paths, the drier’s thermal endurance and screen support become especially important to prevent media migration.

Placement Around Reversing Valves and Check Valves

To protect metering devices in both modes, technicians often locate a bi-flow drier in the line that functions as liquid during each operating state, which is not always obvious at first glance. In packaged heat pumps, strategic placement near the indoor coil outlet or outdoor coil outlet depends on where the liquid line resides during heating vs cooling. If check valves are used to force flow in a desired direction through a standard drier, confirm the valve Cv and cracking pressure so the combined assembly does not create an excessive pressure drop. When you compare a true bi-flow assembly to a check-valve workaround, the bi-flow option typically offers simpler piping, fewer leak joints, and easier diagnostics, whereas the workaround may be attractive when inventory is limited but demands careful commissioning.

Service Practices for Seasonal Reliability

Heat pumps experience more mode changes and longer annual runtime than cooling-only systems, so desiccant capacity and screen robustness matter. During seasonal checks, verify that the drier does not run hot during defrost, listen for noise that hints at media movement, and confirm stable subcooling in both directions. If a burnout or moisture event occurs, install temporary suction-line cleanup driers to capture acids and particulates, then remove or replace them once acid tests are neutral and pressure drop falls within targets. Compared with leaving a suction cleanup drier in place indefinitely, removing it after recovery preserves efficiency and prevents undue suction pressure losses.

Heat Pump Considerations Table

• Confirm which line is liquid in each mode before committing to placement.
• Document baseline pressure drop across the drier in heating and cooling.
• After any repair, test defrost performance while monitoring subcooling and superheat.

replaceable core refrigerant filter drier vs sealed

Serviceability and Lifecycle Perspective

Replaceable-core shells and sealed cartridge driers both remove acid, moisture, and particulates, yet they solve different lifecycle problems. Sealed cartridges are compact, cost-effective, and ideal where space is tight and contamination risk is modest. When the job demands frequent cleanup—after a compressor burnout, during phased retrofits, or in large systems where weld slag and oxides are common—a replaceable-core shell makes it possible to swap media without cutting the line. In pure service terms, the shell approach reduces downtime across successive cleanings and limits repeated heating of adjacent components. Compared with sealed cartridges, core shells also allow you to tailor the core mix (high-acid capacity, high-particulate, or balanced). The trade-off is initial cost, space, and the discipline required to perform clean core changes without introducing new contaminants.

Capacity, Pressure Drop, and Risk Management

At a given connection size, shells typically accept larger media volumes, which yields higher dirt and moisture capacity and often lower pressure drop. That advantage grows in messy systems with long piping and multiple accessories. However, sealed cartridges shine in small equipment where every elbow matters, and pressure drop through a correctly sized cartridge is entirely acceptable. Comparing a sealed unit to a core shell at the same flow, the shell generally provides a longer cleanup window and more gradual rise in pressure drop as it loads. Conversely, sealed cartridges simplify inventory and reduce the chance of improper core selection, which can be a hidden source of performance drift in complex plants.

Procedural Discipline During Core Changes

When changing a core, isolate the section, recover refrigerant as required, and follow a sterile workflow: cap open lines, wipe seating surfaces, and avoid linty cloths. After reassembly, perform a deep evacuation and a standing vacuum test to confirm tightness and low moisture. Compared with cutting and brazing to replace a sealed unit, this method reduces thermal stress on nearby valves and insulation, especially in crowded mechanical rooms. Nevertheless, on small split systems, the simplicity of replacing a sealed cartridge can be faster and less error-prone for crews that do not routinely handle shells.

Comparison Table: Replaceable Core vs Sealed

• Use a shell when repeated filter changes are anticipated during cleanup.
• Choose sealed cartridges for compact systems with routine service intervals.
• After severe contamination, pair a suction cleanup drier temporarily, then remove it.

liquid line filter drier moisture indicator

What the Indicator Tells You—and What It Does Not

A moisture indicator integrated with a sight glass provides two quick visual checks: the presence of bubbles in the liquid stream and the relative dryness of the refrigerant. The color element responds to moisture level by shifting shade, offering a fast “go/no-go” cue for technicians. Compared with relying only on evacuation history or a single vacuum reading, an indicator adds ongoing feedback during operation and after service events. However, it is not a laboratory instrument; temperature, oil type, and lighting can influence perception. That is why it is best used in combination with measured subcooling and superheat to validate system health.

Interpreting Colors and Acting Decisively

Before you take action, confirm that the indicator’s reference chart applies to the specific element installed. As a general workflow, verify liquid-line temperature and pressure, compute subcooling, and then read the color. If the indicator shows a “wet” condition while subcooling is low and bubbles appear, the system likely contains both flash gas and excess moisture—replace the liquid-line drier and re-evacuate. If the indicator trends toward “dry” but bubbles persist, focus on subcooling and possible restriction upstream. Compared with guessing from one symptom, this combined approach shortens troubleshooting and reduces repeat visits.

Bubble Clues vs False Positives

Bubbles can mean flash gas from inadequate subcooling, a restriction, or simply observation during startup or immediately after a hot-gas defrost. Warm ambient on the sight glass can also influence what you see. Compared with a stable, bubble-free stream under steady load, intermittent froth during transients is less concerning. If bubbles coincide with a wet indicator, treat it as a moisture problem first; if the indicator is dry yet bubbles remain, investigate subcooling, receiver level, and condenser performance.

Reference Table: Typical Indicator Readings

• Always compare indicator reading with measured subcooling and superheat.
• Shield the sight glass from direct sunlight when evaluating color.
• After drier changes, log indicator color and system metrics as a new baseline.

best placement of refrigerant filter drier in line

Liquid-Line Placement Principles

The most common permanent location for a liquid-line filter drier is downstream of the condenser (or receiver, if present) and upstream of the expansion device. This arrangement protects the metering device from particulates and ensures the refrigerant remains dry as it throttles, preventing ice formation at the orifice or valve port. Compared with installing the drier far upstream, placing it close to the expansion device reduces the length of pipe where new moisture could enter after dehydration. In systems with receivers, many technicians favor mounting the drier at the receiver outlet to filter everything leaving storage. If the system includes multiple expansion devices, a dedicated drier per branch can improve resilience and simplify diagnostics.

Special Cases: Heat Pumps and Complex Systems

Heat pumps and multi-mode systems demand careful thinking because the “liquid line” changes with operating mode. A bi-flow drier positioned where liquid exists in both heating and cooling maintains protection regardless of flow direction. In VRF-style systems with many branches, drier placement is often near the central unit with additional strainers or branch-line filtration where contamination risk is high. Compared with a single central drier, distributed protection can minimize the impact of a local failure and limit service to the affected branch.

Commissioning and Verification Steps

After installation, verify correct placement by measuring pressure drop across the drier at design load and by confirming stable subcooling at the expansion device inlet. If pressure drop is excessive, a larger unit or a relocated position with fewer upstream bends may be necessary. Compared with leaving a marginal layout uncorrected, optimizing placement quickly pays back through reduced nuisance calls and consistent comfort. When in doubt during a cleanup period, install service valves to allow temporary drier relocation or parallel driers; once the system stabilizes, remove temporary components and re-establish the permanent configuration.

Placement Options Compared

• Keep the permanent liquid-line drier as close as practical to the expansion device inlet.
• Use service valves for temporary cleanup driers to simplify removal later.
• Document measured pressure drop across the drier for future comparison.
