DJ Type Air Cooler

Product Introduction

The DJ type low-temperature ceiling-mounted cold air blower is a cooling and temperature reduction equipment specially designed for low-temperature cold storage. It is suitable for storage temperatures of -25℃ or lower and is widely used in the low-temperature freezing of meat, fish, frozen food, medicine, medicinal materials, and chemical raw materials. This product is made of thin-walled steel pipes and aluminum fins formed by punching and secondary flanging at one time, which are closely combined through a mechanical tube expansion process, featuring high heat transfer efficiency. Its shell is treated with a powder coating process, which has strong corrosion resistance and a smooth and beautiful appearance.
The cold air blower is equipped with a high-efficiency external rotor motor, featuring large air volume, long range and low noise, ensuring stable operation in damp and low-temperature environments. U-shaped tubular stainless steel tubes and electric heating tubes filled with magnesium oxide are placed in the coil, with a short defrosting time and good effect. In addition, the product undergoes pressure holding and nitrogen filling treatment before leaving the factory to ensure the cleanliness of the system. It is convenient for installation and maintenance, making it an ideal choice for low-temperature cold storage.

Technical data of DJ type air cooler

Fin space 9mm

Model			DJ-1.3/8	DJ-1.6/10	DJ-2.3/15	DJ-3.6/20	DJ-5/30	DJ-7.3/40	DJ-10/55	DJ-12/70
Cooling capacity		KW	1.3	1.6	2.3	3.6	5	7.3	10	12
Heat exchange area		m²	8	10	15	20	30	40	55	70
Fan	Diameter	mm	300	300	300	400	400	450	450	450
	Air flow	m³	2*1950	2*1950	3*1950	2*4000	2*4000	2*4700	2*4700	2*4700
	Quantity	N	2	2	3	2	2	2	2	3
	Voltage	V	220/380	220/380	220/380	220/380	220/380	380	380	380
	Power	w	2*100	2*100	3*100	2*230	2*230	2*280	2*280	3*280
	Range	M	8	8	8	10	10	15	15	15
Defrost heater	Coil defrost power	W	1400	1600	2200	1800	2300	3900	5200	6200
	Coi defrost power	W	700	800	1100	900	1150	1300	1300	1550
	Voltage of defrost heater	V	220	220	220	220	220	220	220	220

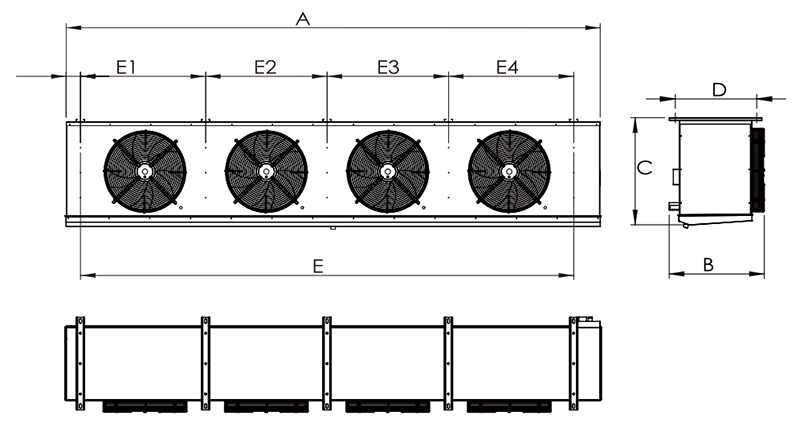

Installation dimension	A	mm	1010	1125	1575	1330	1750	1820	1820	2220
	B	mm	425	425	425	500	500	710	710	710
	C	mm	460	460	460	530	530	710	710	710
	D	mm	260	260	260	390	390	510	510	510
	E	mm	815	930	1380	1060	1480	1550	1550	1950
	E1	mm					740	775	775	658
	E2	mm								633
	E3	mm
	F	mm	80	80	80	95	95	95	95	95
Connection Pipe	Inlet	mm	Φ12	Φ12	Φ12	Φ16	Φ16	Φ19	Φ19	Φ19
Connection Pipe	Outlet	mm	Φ22	Φ22	Φ22	Φ25	Φ25	Φ35	Φ35	Φ35
Drainage pipe			G1"	G1	G1"	G1"	G1	G1"	G1"	G1"

Model			DJ-15/85	DJ-17/100	DJ-20/115	DJ-24/140	DJ-29/170	DJ-36/210	DJ-41/250	DJ-52/300
Cooling capacity		KW	15	17	20	24	29	36	41	52
Heat exchange area		m²	85	100	115	140	170	210	250	300
Fan	Diameter	mm	450	450	450	600	600	600	700	700
	Air flow	m³	3*4700	4*4700	4*4700	2*10000	3*10000	3*10000	3*14000	3*14000
	Quantity	N	3	4	4	2	3	3	3	3
	Voltage	V	380	380	380	380	380	380	380	380
	Power	W	3*280	4*280	4*280	2*1500	3*1500	3*1500	3*2200	3*2200
	Range	M	15	15	15	20	20	20	20	20
Defrost heater	Coil defrost power	W	7600	8600	9800	12400	15200	17200	19350	22050
	Coil defrost power	W	1900	2150	2450	1550	1900	2150	2150	2450
	Voltage of defrost heater	V	220	220	220	220	220	220	220	220
Installation dimension	A	mm	2720	3120	3520	2220	2720	3200	3200	3520
	B	mm	710	710	710	1060	1060	1060	1060	1060
	C	mm	710	710	710	920	920	920	1030	1140
	D	mm	510	510	510	690	690	690	690	690
	E	mm	2450	2850	3250	1950	2450	2930	2930	3250
	E1	mm	825	725	825	975	825	985	985	1090
	E2	mm	800	700	800		800	960	960	1070
	E3	mm		700	800
	F	mm	95	95	95	95	95	95	95	95
Connection Pipe	Inlet	mm	Φ19	Φ25	Φ25	Φ25	Φ25	Φ25	2-Φ25	2-Φ25
Connection Pipe	Outlet	mm	Φ35	Φ50	Φ50	Φ50	Φ50	Φ50	2-Φ50	2-Φ50
Drainage pipe			G1"	G1"	G1"	G1.5"	G1.5"	G1.5"	G2"	G2"
