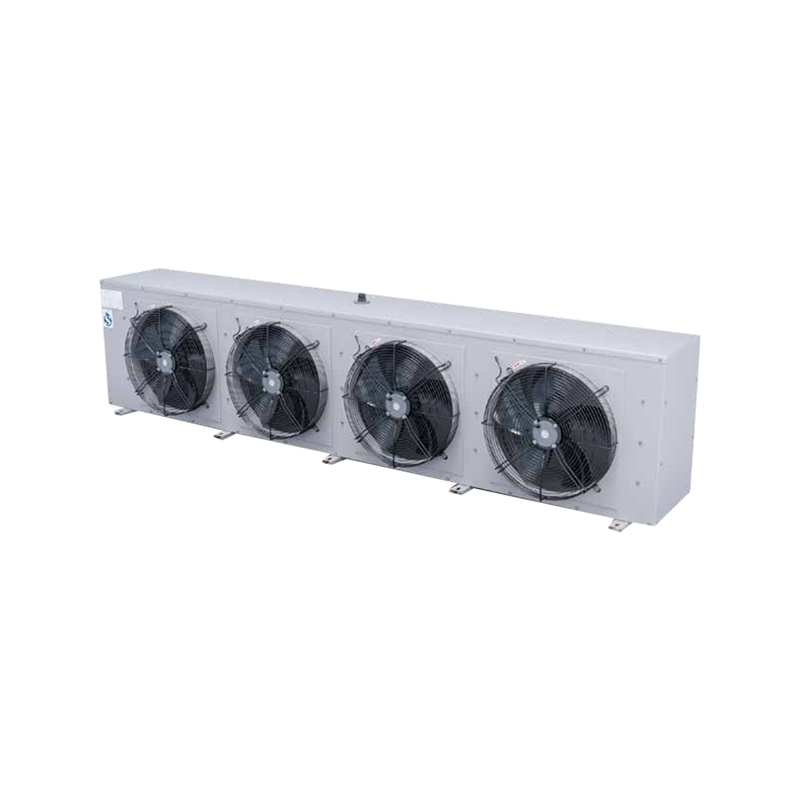

DL Type High Temperature Ceiling Air Cooler

Product Introduction

The DL type high-temperature ceiling-mounted air cooler is a cooling and temperature reduction equipment specially designed for cold storage at around 0℃, and is widely used in food preservation scenarios such as fresh eggs and vegetables. The product adopts a powder-coated shell, featuring corrosion resistance and an attractive appearance. The coils are arranged in a staggered manner, and the aluminum fins are closely connected to the copper tubes through mechanical expansion, ensuring high heat transfer efficiency. The equipment is equipped with factory wiring. All the wiring is centralized in the junction box, making installation and maintenance convenient. The drainage tray is scientifically designed and ensures reliable drainage. The trough-type hanger is easy to install.

This cold air blower supports long-distance air supply or customization of explosion-proof motors. U-shaped tubular stainless steel tubes and magnesium oxide-filled electric heating tubes are placed in the coil, achieving a remarkable defrosting effect. The product complies with national standards, has undergone strict testing, and features stable and reliable performance. It is an ideal choice for cold storage preservation.

Technical data of DL type air cooler

Fin space 4.5mm

Model			DL-2/10	DL-3/15	DL-4.3/20	DL-5.3/25	DL-8.2/40	DL-12/55	DL-17/80	DL-22/105
Cooling capacity		KW	2	3	4.3	5.3	8.2	12	17	22
Heat exchange area		m²	10	15	20	25	40	55	80	105
Fan	ΦDiameter	mm	300	300	300	300	400	400	450	450
	Air flow	m³	1950	2*1950	2*1950	3*1950	2*4000	2*4000	2*4700	2*4700
	Quantity	N	1	2	2	3	2	2	2	2
	Voltage	V	220/380	220/380	220/380	220/380	220/380	220/380	380	380
	Power	W	100	2*100	2*100	3*100	2*230	2*230	2*280	2*280
	Range	M	8	8	8	8	10	10	15	15
Defrost heater	Coil defrost power	W	500	700	800	1100	900	1150	3900	3900
	Coil defrost power	W	500	700	800	1100	900	1150	1300	1300
	Voltage of defrost heater	V	220	220	220	220	220	220	220	220

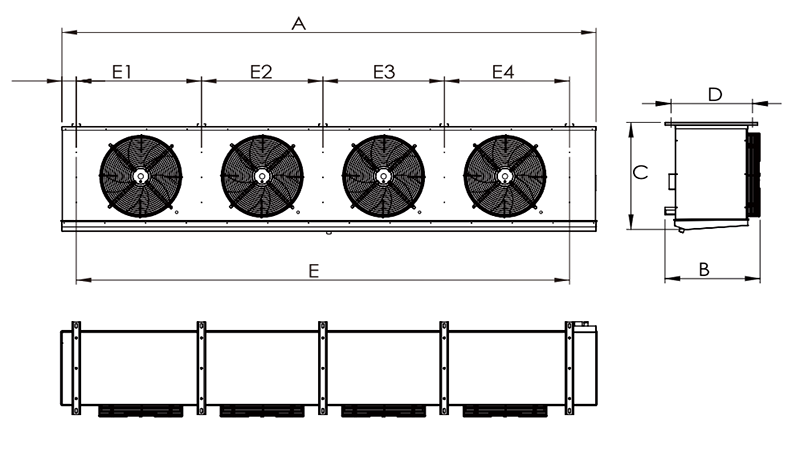

Installation dimension	A	mm	725	1010	1125	1575	1330	1750	1820	1820
	B	mm	425	425	425	425	500	500	710	710
	C	mm	460	460	460	460	530	530	710	710
	D	mm	260	260	260	260	390	390	510	510
	E	mm	530	815	930	1380	1060	1480	1550	1550
	E1	mm						740	775	775
	E2	mm
	E3	mm
	F	mm	80	80	80	80	95	95	95	95
Connection Pipe	Inlet	mm	Φ12	Φ12	Φ12	Φ12	Φ16	Φ16	Φ19	Φ19
Connection Pipe	Outlet	mm	Φ22	Φ22	Φ22	Φ22	Φ25	Φ25	Φ35	Φ35
Drainage pipe			G1"	G1"	G1"	G1"	G1	G1	G1"	G1"

Mode			DL-26/125	DL-33/160	DL-38/185	DL-44/210	DL-53/260	DL-67/330	DL-83/410	DL-94/470	DL-116/580
Cooling capacity		KW	26	33	38	44	53	67	83	94	116
Heat exchange area		m²	125	160	185	210	260	330	410	470	580
Fan	Diameter	mm	450	450	450	450	600	600	600	700	700
	Air flow	m³	3*4700	3*4700	4*4700	4*4700	2*10000	3*10000	3*10000	3*14000	3*14000
	Quantity	N	3	3	4	4	2	3	3	3	3
	Voltage	V	380	380	380	380	380	380	380	380	380
	Power	W	3*280	3*280	4*280	4*280	2*1500	3*1500	3*1500	3*2200	3*2200
	Range	M	15	15	15	15	20	20	20	20	20
Defrost heater	Coil defrost power	W	4650	5700	6450	7350	7750	9500	10750	12900	14700
	Coil defrost power	W	1550	1900	2150	2450	1550	1900	2150	2150	2450
	Voltage of defrost heater	V	220	220	220	220	220	220	220	220	220
Installation dimension	A	mm	2220	2720	3120	3520	2220	2720	3200	3200	3520
	B	mm	710	710	710	710	1060	1060	1060	1060	1060
	C	mm	710	710	710	710	920	920	920	1030	1140
	D	mm	510	510	510	510	690	690	690	690	690
	E	mm	1950	2450	2850	3250	1950	2450	2930	2930	3250
	E1	mm	658	825	725	825	975	825	985	985	1090
	E2	mm	633	800	700	800		800	960	960	1070
	E3	mm			700	800
	F	mm	95	95	95	95	95	95	95	95	95
Connection Pipe	Inlet	mm	Φ19	Φ19	Φ25	Φ25	Φ25	Φ25	Φ25	2-Φ25	2-Φ25
Connection Pipe	Outlet	mm	Φ35	Φ35	Φ50	Φ50	Φ50	Φ50	Φ50	2-Φ50	2-Φ50
Drainage pipe			G1"	G1"	G1"	G1"	G1.5"	G1.5"	G1.5"	G2"	G2"
