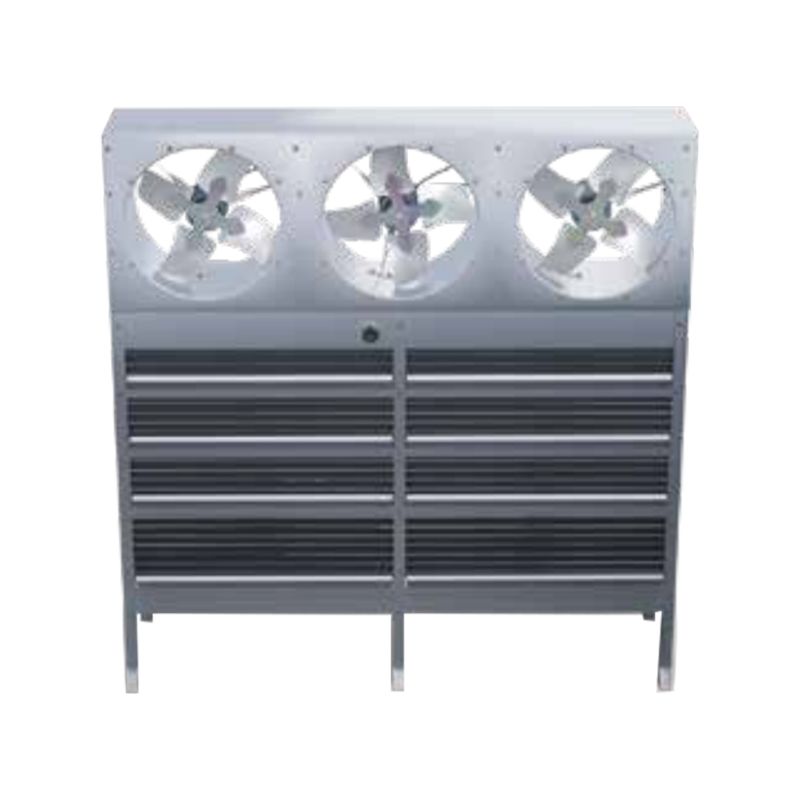

Floor-standing Type Air Cooler

Product Introduction

The low-temperature evaporator, with modular design at its core, deeply integrates advanced technology with environmental protection concepts, becoming an innovative tool in the fields of resource recovery and wastewater treatment. The main component - the low-temperature evaporation host - adopts highly efficient heat exchange materials and a special structural design. Under mild conditions, it can achieve rapid evaporation of water, effectively protecting heat-sensitive substances and ensuring the high quality of the concentrated liquid.

The low-temperature evaporator is also equipped with a pretreatment and filtration module. The multi-stage filtration system effectively removes impurities from the raw liquid, preventing the evaporator from clogging and extending the service life of the equipment. The condensation recovery device converts the evaporated steam into pure water through efficient condensation technology, achieving the recycling of water resources and reducing exhaust emissions at the same time, helping enterprises realize green production.

Low temperature evaporator fin space 9mm

Model				DJL-200	DJL-240	DJL-300	DJL-350	DJL-400	DJL-470	DJL-540	DJL-600	DJL-730
Cooling capacity	SC3	R404A	KW	34.70	40.80	53.10	62.30	70.40	82.10	93.70	105.4	128.5
Cooling capacity	SC3	R22	KW	34.10	40.00	52.00	60.90	69.40	80.60	91.60	102.4	125.8
Air Flow			m³h	24000	30000	42000	42000	48000	48000	72000	69400	86000
Air flow range			m	20	20	20	20	20	20	25	25	25
External pressure			Pa	90	90	90	90	90	90	90	100	120
Noise level			db(A)lm	75	75	75	77	77	77	78	80	80
Fan			NO. ×Φ	3×550	3×600	3×700	3×700	4×700	4×700	3×800	3×800	4×800
Fan Motor 3Phase/380V/50Hz			W	3×750	3×1500	3×2200	3×2200	4×2200	4×2200	3×4000	3×4000	4×4000
Water		Inlet pipe	inch	1-G2"	1-G2"	1-G2"	1-G2"	2-G1.5"	2-G1.5"	2-2G"	2-2G"	2-G2"
Defrost IPhase/230V/50Hz		Drainage outlet	inch	1-G4"	1-G4"	1-G4"	1-G4"	1-G4"	1-G4"	2-4G"	2-4G"	2-G4"

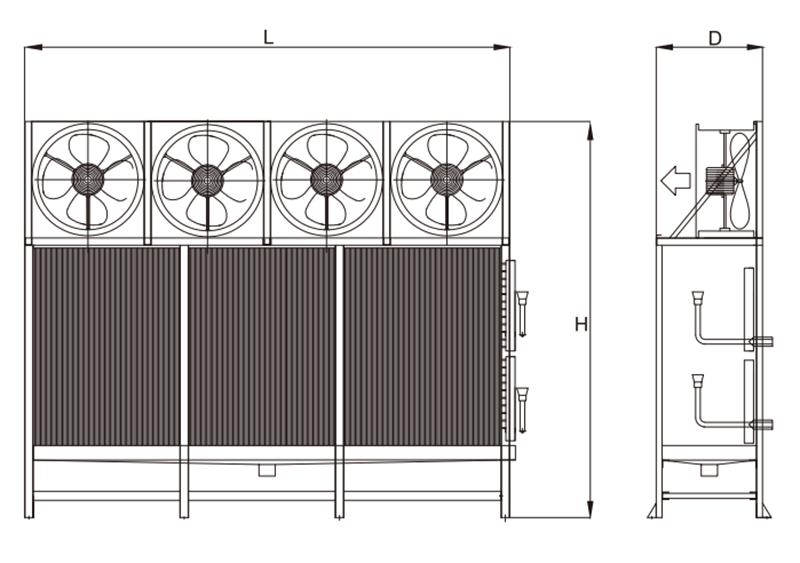

Dimensions		L	mm	2295	2500	2700	2800	3490	3490	3600	3600	4200
		H	mm	2465	2465	2655	2655	2845	2845	3434	3434	3434
		D	mm	796	796	796	796	796	796	1050	1050	1050
Weight			kg	280	310	410	455	680	740	820	910	1180
Connection pipe		Inlet Φ	mm	25×1	25×2	25×2	25×2	25×2	25×2	25×2	22×3	22×3
Connection pipe		Outet Φ	mm	50	50×2	54×2	54×2	54×2	54×2	54×2	54×3	54×3
