FNH Type Condenser-Zhejiang Jinhao Refrigeration Equipment Co. Ltd.

Introduction:

The Air Condenser, manufactured by our company based in China, is a revolutionary product that provides exceptional cooling and air conditioning features, making it ideal for use in commercial as well as residential settings. Our product is designed with the latest technology and advanced features to deliver the best performance, energy efficiency, and durability. We have earned a reputation for producing high-quality products that have a long-lasting life span, and our Air Condenser is no exception.

Product Features:

The Air Condenser is designed with an array of features that make it a top choice for merchants worldwide. For starters, it boasts a high-efficiency compressor and a state-of-the-art evaporator that work hand-in-hand to deliver superior cooling and air conditioning results, even in extremely hot and humid climates.

Additionally, the Air Condenser also comes equipped with an advanced air filtration system that eliminates airborne contaminants such as dust, bacteria, and allergens. This feature ensures that the air in your surroundings is free from harmful particles, providing a healthy and comfortable living environment.

Notably, another feature that sets our Air Condenser apart from the competition is its advanced smart thermostat system. This technology allows you to control the temperature of the air conditioner, monitor its energy usage, and track its filter replacements, all from your smartphone, tablet or computer.

Energy Efficiency:

One of the critical concerns today when it comes to air conditioning is energy efficiency. As such, our Air Condenser was designed with the latest energy-saving technology that helps reduce your energy consumption and save you money on your energy bills.

Durability:

Another essential feature of our Air Condenser is its durability. Our product is made with high-quality materials that are made to withstand harsh weather conditions and resist wear and tear, ensuring that you get reliable air conditioning and cooling for many years to come.

Easy Installation and Maintenance:

We recognize that the installation and maintenance of an air conditioner can be a hassle, that's why we have made the Air Condenser very easy to install and maintain. Our product comes with an easy-to-follow installation guide and user manual that will help you set up the air conditioner quickly.

Furthermore, our Air Condenser has an easy-to-remove and washable filter that makes it easy to clean and maintain. This feature ensures that your air conditioner operates at optimal performance and minimizes wear and tear.

Final thoughts:

In conclusion, the Air Condenser by our company based in China is one of the best air conditioning and cooling products you can find today. Our product boasts numerous advanced features that make it energy efficient, durable, easy to install, and maintain. We are confident that the Air Condenser will exceed your expectations and provide you with long-lasting air conditioning and cooling. Contact us today to learn more about our product and how you can purchase it for your commercial or residential setting.

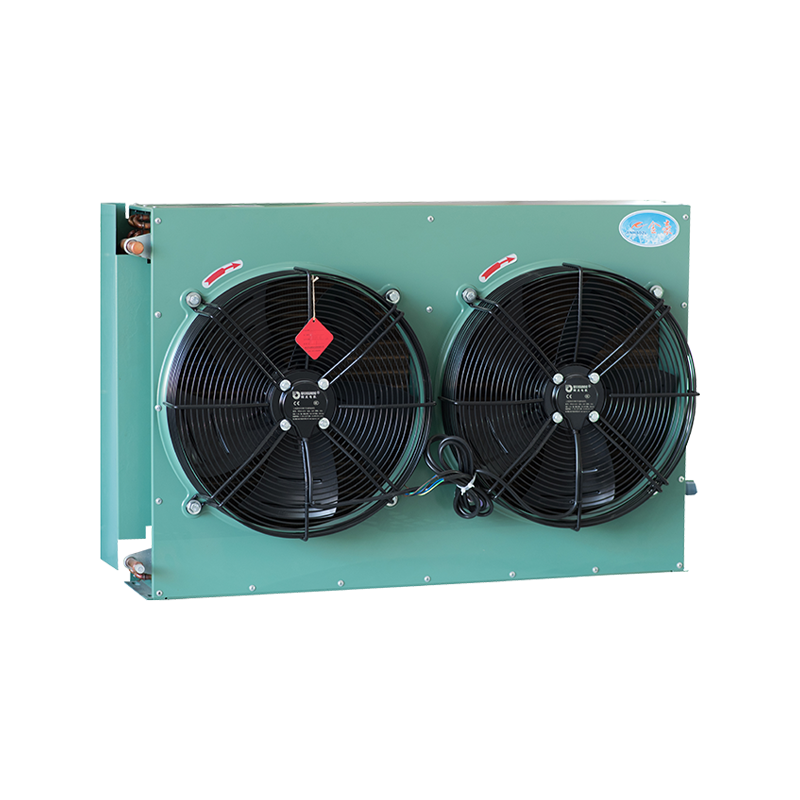

H series air-cooled condensers are mainly equipped with open-type condensing unit with scroll compressor, hermetic& semi-hermetic compressor.

● Copper tube is Φ8.6mm, corrugated aluminum fins with fin space of 2.2mm

● High-quality external rotor motor with low noise

● Adopt steel plate with powder coating

● Has been tested at 2.8MPa for air leakage

Technical data of FNH type condenser

Description of air-cooled condenser

49 Heat exchange area(m2)

14.8 Heat exchange capacity(Kw)

G Gstand for semi-closed Copeland

H Hstands for flat type (side air flow), V stands for V type(V top air flow) U stands for U type(U top air flow),w stands for W type(W top air flow)

FN Series code

Model	Heat exchange capacity (KW)	Number of coils	Heat exchange area(m)	Fan				Diameter of connection pipe(mm)		Dimension(mm)	installation dimension(mm)
Model	Heat exchange capacity (KW)	Number of coils	Heat exchange area(m)	Power W	Φ Diameter	Air flow(m³/h)	Voltage	Inlet	Outlet	A×B×C	D	E
FNH-0.6/2.1	0.6	2×4	2.1	1*35	Φ200	430	220	10	10	280×120×240	280	60
FNH-1.0/3.4	1	3×4	3.4	1*35	Φ200	430	220	10	10	280×120×240	280	60
FNH-1.5/5.0	1.5	3×5	5	1*60	Φ250	910	220	10	10	325×120×290	325	60
FNH-1.7/5.7	1.7	3×6	5.7	1*100	Φ300	1950	220	10	10	370×130×340	370	70
FNH-2.2/8	2.2	4×6	8	1*100	Φ300	1950	220	12	12	370×150×340	370	90
FNH-3.5/12	3.5	4×8	12	1*180	Φ350	2700	220/380	16	16	430×180×430	420	120
FNH-4.4/15	4.4	4×9	15	1*180	Φ350	2700	220/380	16	16	480×180×480	470	120
FNH-5.4/18	5.4	4×10	18	1*230	Φ400	4000	220/380	16	16	520×180×530	510	120
FNH-6.7/22A	6.7	5×10	22	1*230	Φ400	4000	220/380	16	16	520×200×530	510	140
FNH-6.7/22B	6.7	4×8	22	2*180	Φ350	2*2700	220/380	16	16	820×180×430	805	120
FNH-8.3/28	8.3	4×9	28	2*180	Φ350	2*2700	380	16	16	880×180×480	865	120
FNH-9.8/33	9.8	4×10	33	2*230	Φ400	2*4000	380	16	16	930×180×530	915	120
FNH-12.5/41	12.5	4×12	41	2*230	Φ400	2*4000	380	19	16	930×180×630	915	120
FNH-14.8/49	14.8	5×12	49	2*230	Φ400	2*4000	380	19	16	930×200×630	915	140
FNH-16/55	16	4×14	55	2*230	Φ400	2*4000	380	19	16	1100×200×730	1085	140
FNH-17/60	17	4×14	60	2*280	Φ450	2*4700	380	19	16	1140×200×730	1125	140
FNH-20/70	20	4×18	70	4*180	Φ350	4*2700	380	25	19	1140×200×930	1125	140
FNH-23/80	23	4×20	80	4*230	Φ400	4*4000	380	25	19	1140×200×1030	1125	140
FNH-29/100	29	5×20	100	4*230	Φ400	4*4000	380	25	19	1140×200×1030	1125	140
FNH-32/110	32	5×22	110	4*230	Φ400	4*4000	380	32	19	1140×200×1130	1125	140
FNH-35/120	35	5×24	120	4*230	Φ400	4*4000	380	32	19	1140×200×1230	1125	140
FNH-41/140	41	5×26	140	4*280	Φ450	4*4700	380	32	19	1180×220×1330	1165	160
FNH-43.5/150	43.5	5×24	150	4*280	Φ450	4*4700	380	32	25	1350×240×1230	1335	180
FNH-46.4/160	46.4	5×24	160	4*460	Φ500	4*6640	380	32	25	1450×240×1230	1435	180
FNH-52.2/180	52.2	6×24	180	4*460	Φ500	4*6640	380	35	25	1450×240×1230	1435	180
FNH-58/200	58	6×24	200	4*460	Φ500	4*6640	380	35	25	1500×240×1230	1485	180
