Product Introduction

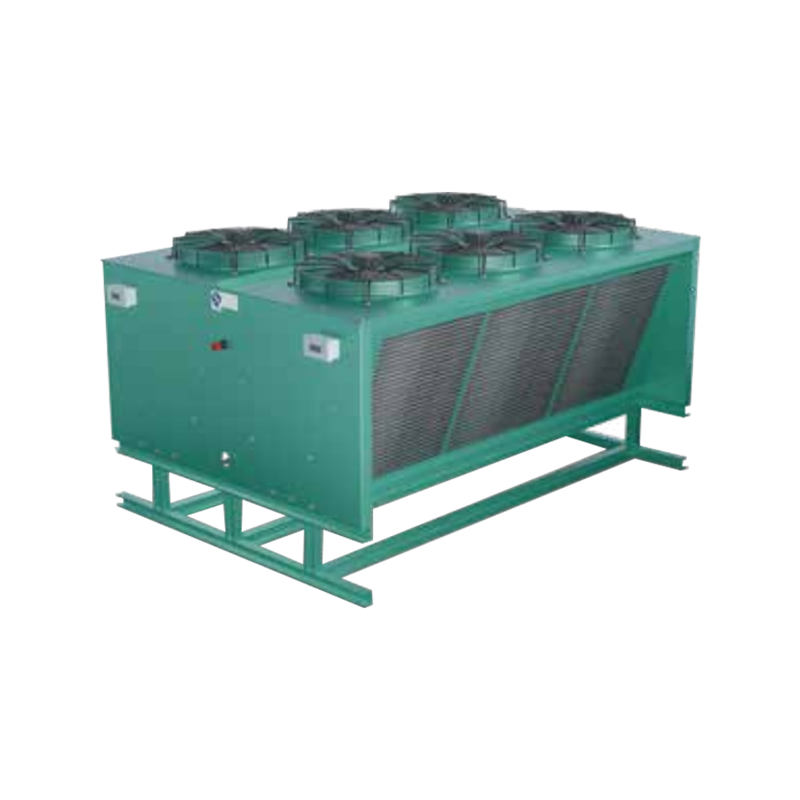

The FNW type top air outlet condenser is a highly efficient heat dissipation device specially designed for Freon refrigeration equipment. It adopts a top air outlet form and is suitable for medium and high horsepower compressors. The product shell is made of high-quality steel plate and treated with plastic spraying on the surface, featuring corrosion resistance and an attractive appearance. Its core heat exchange components adopt 3/8 "copper tubes and pitted aluminum sheets, which are closely adhered through mechanical tube expansion technology to ensure efficient heat exchange performance.
This condenser has excellent air tightness. Before leaving the factory, it needs to pass a pressure test of more than 2.8MPa and retain a residual pressure of 0.05MPa to 0.1MPa to ensure long-term operational reliability. The product supports multiple refrigerants such as R22, R134a, and R404A, and is widely compatible with various Freon refrigeration systems.
The FNW type condenser has an optimized design on the windward side and is equipped with a 6-pole low-noise motor, which combines efficient heat exchange with silent operation. It is particularly suitable for large condensing units or refrigeration scenarios that are sensitive to noise. Different specifications can be customized according to customer needs to meet diverse application requirements.
