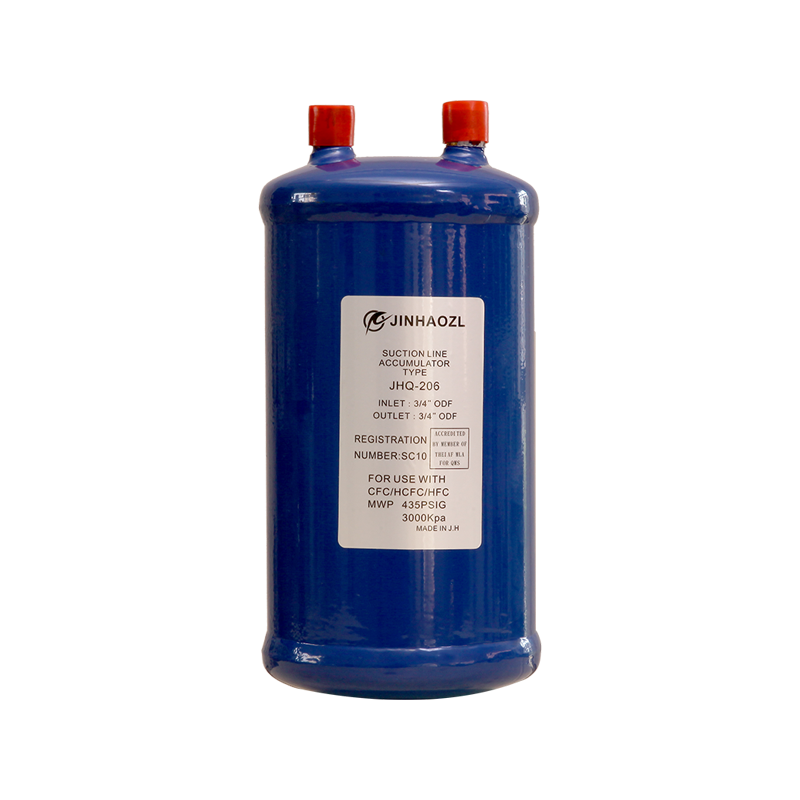

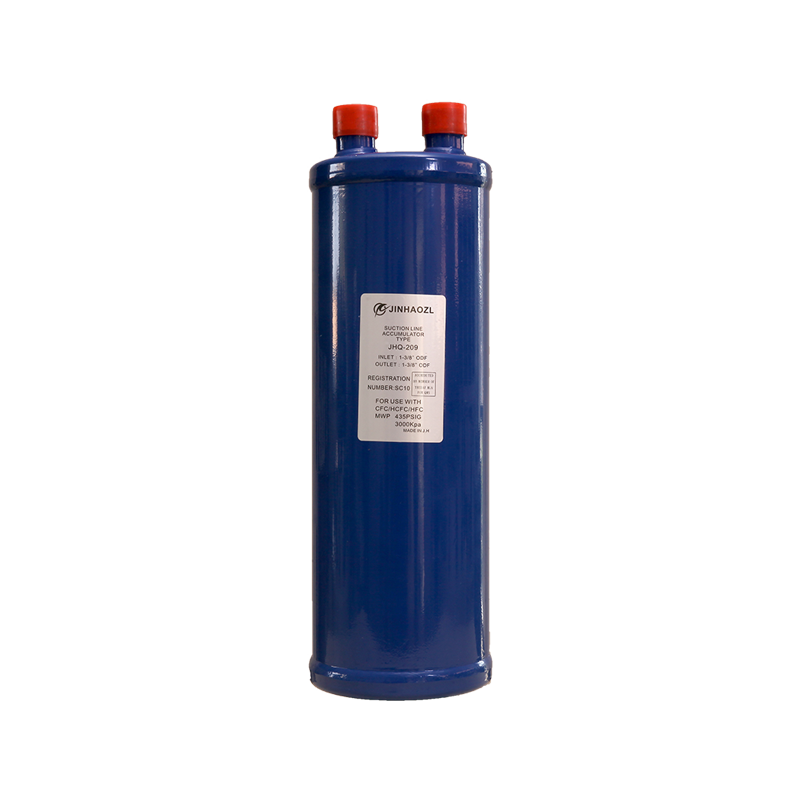

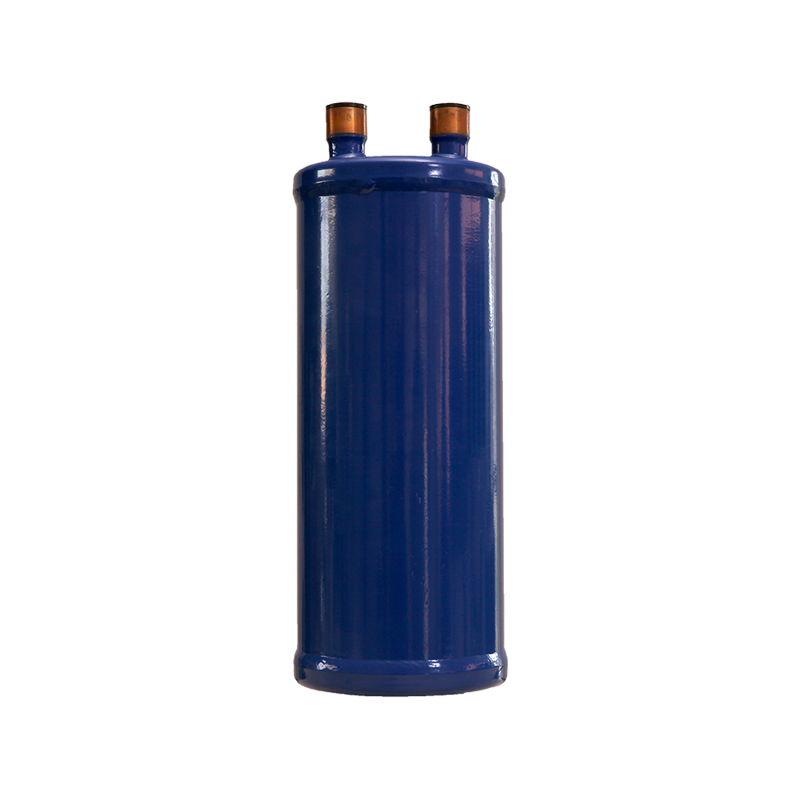

Suction line accumulator uses U tube design to prevent refrigerant from splashing, better to gather oil at the bottom. It is better to install closely to compressor.
Solid copper connection
'U' tube design ensures maximum refrigerant flow and minimum oil trap.
Filter and little hole on 'U' tube is to prevent foreign matter
'U' tube design can stop gaseous refrigerant entering compressor
Corrosion-resistant powder painting finish to prevent rusting
Technical data
Refrigerant: CFC, HCFC, HFC
Maximum working pressure: 28 bar
Temperature:-50 +120c
|
Mode |
Connection size(inch) |
ΦD(mm) |
H(mm) |
B(mm) |
E(mm) |
C(mm) |
Volume(L) |
|
JHQ-204 |
1/2" |
Φ102 |
210 |
50 |
- |
- |
1.4 |
|
JHQ-205 |
5/8" |
Φ102 |
250 |
50 |
- |
- |
1.6 |
|
JHQ-206 |
3/4" |
Φ140 |
267 |
70 |
- |
- |
3.4 |
|
JHQ-207 |
7/8" |
Φ140 |
330 |
70 |
- |
- |
4.2 |
|
JHQ-208 |
1-1/8" |
Φ159 |
393 |
80 |
- |
- |
6.5 |
|
JHQ-209 |
1-3/8" |
Φ159 |
470 |
80 |
- |
- |
8 |
|
JHQ-210 |
1-5/8" |
Φ159 |
530 |
80 |
- |
- |
9.3 |
|
JHQ-2117 |
2-1/8" |
Φ219 |
400 |
108 |
- |
- |
15 |
|
JHQ-4117 |
2-1/8" |
Φ273 |
530 |
127 |
230 |
230 |
30 |
|
JHQ-3521 |
2-5/8" |
Φ273 |
640 |
127 |
230 |
230 |
35 |
|
JHQ-5624 |
3" |
Φ325 |
650 |
180 |
270 |
270 |
50 |
|
JHQ-5625 |
3-1/8" |
Φ325 |
650 |
170 |
270 |
270 |
50 |
|
JHQ-7034 |
3-5/8" |
Φ425 |
650 |
220 |
380 |
380 |
60 |
