Product Introduction
Vertical liquid receiver is your best choice of refrigeration parts, it requires verical installation, maximum working pressure is 2.0MPa.Vertical liquid receiver has one high-quality rotary valve, so that it can install with 36odegree rotating.
|

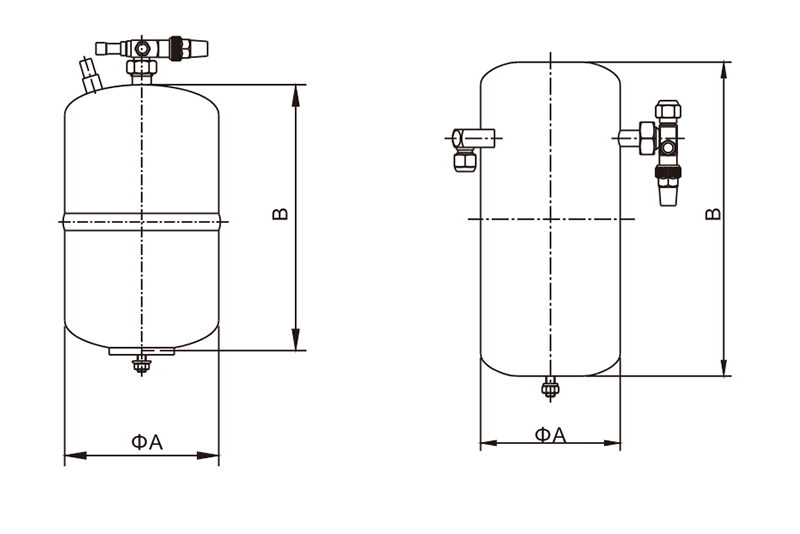

Model |
A(mm) |
B(mm) |
Connection size(inch) |
Volume(L) |
Retaining screw |
|
JHC-1/2HP |
98 |
179 |
3/8" |
1 |
M10 |
|
JHC-1HP |
120 |
215 |
3/8" |
2.2 |
|
|
JHC-2HP |
131 |
250 |
3/8" |
3 |
|
|
JHC-3HP |
147 |
265 |
1/2" |
4 |
|
|
JHC-5HP |
155 |
280 |
1/2" |
6 |
|
|
JHC-8HP |
180 |
310 |
1/2" |
8 |
|
|
JHC-10HP |
219 |
313 |
5/8" |
10 |
M12 |
|
JHC-12HP |
219 |
355 |
5/8" |
12 |
|
|
JHC-14HP |
219 |
390 |
5/8" |
14 |
|
|
JHC-16L |
219 |
450 |
7/8" |
16 |
Tripod |
|
JHC-18L |
219 |
530 |
7/8" |
18 |
|
|
JHC-20L |
219 |
600 |
7/8" |
20 |
|
|
JHC-25L |
219 |
750 |
7/8" |
25 |
